Double Disc Grinding – Horizontal Spindle

Double Disc Grinding – Horizontal Spindle

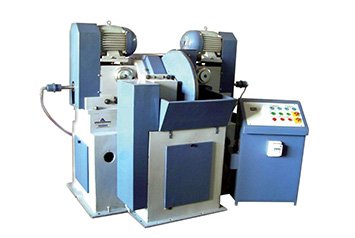

Double Disc Grinding - Horizontal Spindle - Carrier Manual

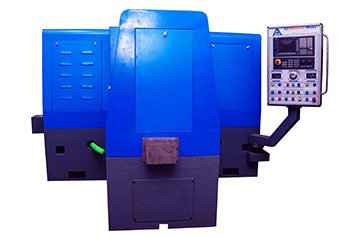

Double Disc Grinding - Horizontal Spindle - CNC SPM

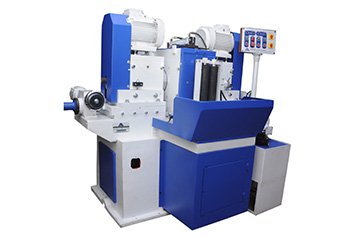

Double Disc Grinding _ Horizontal Spindle - Manual

As a reputed firm, we are engaged in manufacturing and supplying a wide range of Double Disc Grinding Machine in Surendranagar, Gujarat, India. This Machine Specially Used for All Types of Bearing Con, Thrust Bearing visor, Ring Washers, Sheet Metal Washers, Sir Clips, and Piston Rings etc. This machine is widely used in industries like automobile, ball bearings, compressors and Auto parts etc.

Our Horizontal series uses powerful double disc grinding technology is specially suited for simultaneously grind opposite and parallel surfaces flat, at high rates of production for quick flat grinding of work-pieces.

The spindle runs on super precision bearings provides accurate finishing even under heavy duty loads. This Design is key to accuracy, precision and reliability from the Ajit Mechanic Works.

The spindle head travels in the vertical column with power and manual in-feed. Also be provided Automatic in-feed as optional.

Vertical tilting and horizontal swiveling mechanism of the spindle is operated.

Coolant provide through spindle to both spindles.

Hydraulically operated dressing system.

All controls are provide with easy reach to the operator.

All models are available with the option for Manual, PLC & CNC controls for automatic grinding cycle including wheel dressing and compensation.

Ajit Mechanic Works is the leading manufacturer, supplier and exporter of double disc grinding machine, duplex surface grinding machine, double disc surface grinding machine, dual face grinding machine, through pass duplex grinding at Gujarat, Karnataka, Maharashtra, Tamilnadu, Delhi, Rajasthan, Punjab.

Technical Specification

Model Name: AMW DS/HG 350 AMW DS/HG 500 AMW DS/HG 660 AMW DS/HG 760
Maximum Job Diameter: 10 to 100MM 25 to 150MM 50 to 200MM 50 to 300MM
Maximum Job Width: 40 MM 60 MM 70 MM 80 MM
Power Require(Approx): 17.5 HP 27.5 HP 37.5 HP 47.5 HP
Approx. Weight 2900 KG 4200 KG 6000 KG 6500 KG
Grinding Wheel Size 350 x 50 x 25.4 500 x 65 x 25.4 660 x 80 x 25.4 760 x 80 x 25.4
