Double Disc Grinding – Vertical Spindle

Double Disc Grinding–Vertical Spindle

Double Disc Grinding-Vertical Spindle Carier
Double Disc Grinding-Vertical Spindle PLC

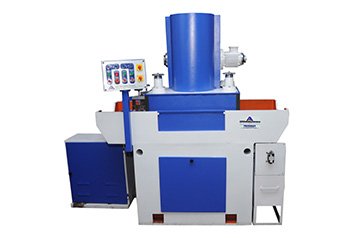

Double Disc Grinding-Vertical Spindle Manual

As a reputed firm, we are engaged in manufacturing and supplying a wide range of Double Disc Grinding Machine in Surendranagar, Gujarat, India. This Machine Specially Used for All Types of Bearing Con, Thrust Bearing visor, Ring Washers, Sheet Metal Washers, Sir Clips, and Piston Rings etc. This machine is widely used in industries like automobile, ball bearings, compressors and Auto parts etc.

Our Vertical series uses powerful double disc grinding technology is specially suited for simultaneously grind opposite and parallel surfaces flat, at high rates of production for quick flat grinding of work-pieces.

Ajit Mechanic Works is the leading manufacturer, supplier and exporter of double disc grinding machine, duplex surface grinding machine, double disc surface grinding machine, dual face grinding machine, through pass duplex grinding at Gujarat, Karnataka, Maharashtra, Tamilnadu, Delhi, Rajasthan, Punjab.

The spindle runs on super precision bearings provides accurate finishing even under heavy duty loads. This Design is key to accuracy, precision and reliability from the Ajit Mechanic Works.

The spindle head travels in the vertical column with power and manual in-feed. Also be provided Automatic in-feed as optional.

Coolant provide through spindle to both spindles.

Hydraulically operated dressing system .

All controls are provide with easy reach to the operator .

All models are available with the option for Manual, PLC & CNC controls for automatic grinding cycle including wheel dressing and compensation.

All models can be customized for a specific application to suit specific customer needs.

Technical Specification

Specification: AMW DS/VG 350 AMW DS/VG 400 AMW DS/VG 500
Maximum Job Diameter: 5 to 75 MM 5 to 100 MM 25 to 150 MM
Maximum Job Width: 40 MM 50 MM 60 MM
Power Require(Approx): 12.5 HP 17.5 HP 22.5 HP
Approx. Weight 2700 KG 3500 KG 5000 KG
Grinding Wheel Size 300 x 50 x 25.4 400 x 65 x 25.4 500 x 65 x 25.4
